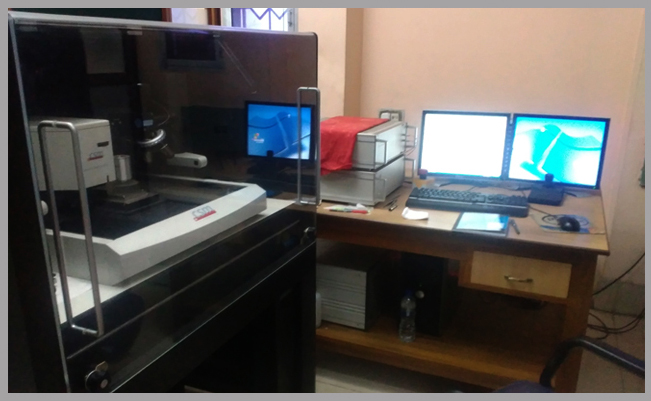

NANO INDENTATION (NANO SCRATCH)
Central Research Facility (CRF)





Specification: CSM Make NHT 1

  • Load application / measurement Piezo actuator/capacitive sensor Load range 0 – 500 mN (optional 1000 mN)
  • - fine range: 10 mN - standard range: 500 mN N* (rms) Load resolution : 1 nN, noise floor ≈ 0.1
  • N Minimum usable load : 25
  • Maximum load : 50 mN (100 mN with high load option)
  • N)N* ( = noise floor ≈ 0.1  Minimum contact force : 0.1
  • Contact force hold time : unlimited
  • > Displacement measurement Differential capacitive sensor Displacement resolution 0.0003 nm, noise floor ≈ 0.03 nm* (rms)
  • Thermal drift (raw and uncorrected data) : ≈ 0.5 nm/min (= 0.008 nm/sec)
  • Maximum indentation depth :
  • m- fine range: 10 m- standard range: 100 m Maximum indenter travel range : 100
  • Usable load range for Ultra Nanoindentation Tester: from 0.025 mN to 50 mN in maximum load of indentation
